Доставка из Европы
Год производства: 2006
General specifications:

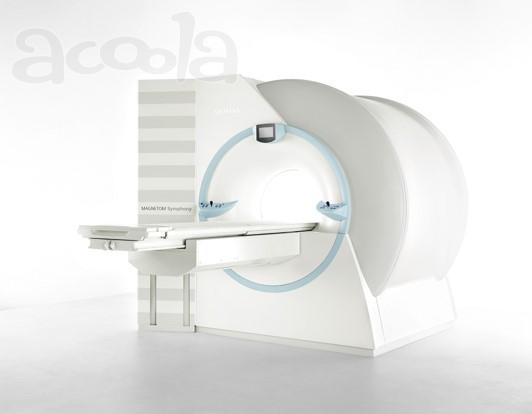

MODEL MAGNETOM Symphony
MAGNET Superconducting
POWER NEEDED
LINE VOLTAGE, VAC 380/400/420/440/480
Kva (POWER NEEDED) 50
A/c, btu/hr (POWER NEEDED) 10.6 kW peak
CLINICAL USE (POWER NEEDED) Whole body
OPTIONS Whole-body integrated panoramic array, applications packages: advanced cardiac, diff/perf, pMRI
BORE FEATURES (DIAMETER, cm) Lights, ventilation, nurse call, intercom ECHO PLANAR IMAGING (CARDIAC
GATING) Optional package
DICOM 3.0 COMPATIBLE (POWER
NEEDED, VAC) Yes
SHIMMING (CRYOGEN USE, L/hr) Passive, active; 1st order; opt 2nd order Diameter, cm (VACUUM)
Body coil (DIAMETER, cm) 60
Head coil (DIAMETER, cm) 26 ID, open sides
ELECTROMAGNETIC FIELD STRENGTH, T
(5-GAUSS FRINGE FIELD) 1.5
IMAGING
Pulse sequences (IMAGING) GRE, IR, FIR, STIR, TrueIR/FISP, FSE, FLAIR, MT, SS-FSE, MT-SE, MTC, MSE, EPI, 3-D: DESS/CISS/ PSIF, GMR, fat/water sat/exc, others
Repetition time, msec (IMAGING) 2.4; opt 2/1.8, all @ 256 x 256
Echo time, msec (IMAGING) 1.1; opt 0.9/0.78, all @ 256 x 256
Inversion time, msec (IMAGING) 22
Slice thickness, mm (GANTRY) 0.1-200 (2-D), 0.05-20 (3-D)
Fov, cm (IMAGING) 0.5-50
Fov offsets (IMAGING) ±25
Scan orientations (IMAGING) Orthogonal (x, y, z) ; oblique second compound
Measuring matrix (IMAGING) 64 x 64 to 1024 x 1024
Display matrix (IMAGE DISPLAY) 1024 x 1024 full screen
Resolution, mm (PERFORMANCE) 0.021 in plane
Angiography Yes
IMAGING MODES
Single (EYEPIECE) Yes
Multislice (IMAGING MODES) Yes
Volume study (IMAGING MODES) Yes
Additional (Alarms, high/low) Multiangle, multioblique
SPECTROSCOPY (GRADIENT SUBSYSTEM) SVS or CSIoptional
SURFACE COILS
Spine (SURFACE COILS) Yes
Knee (SURFACE COILS) Yes
Neck (SURFACE COILS) Yes
Tmj (SYSTEM CAPABILITIES) Yes
Extremity (SURFACE COILS) Yes
Head (SURFACE COILS) Yes
Breast (APPLICATORS) Yes
Shoulder (SURFACE COILS) Yes
Additional (Alarms, high/low) Peripheral MRA, others
BORE SIZE, dia x L
Or w x h x l, cm (BORE SIZE, dia x L) 60 dia
CARDIAC GATING
Ecg/peripheral (CARDIAC GATING) Yes/yes
Reconstruction time
Single slice, sec (RECONSTRUCTION TIME) 0.056@ full 256 x 256
Multislice, sec (RECONSTRUCTION TIME) 0.056/slice @ full 256 x 256
Volume, sec (RECONSTRUCTION TIME) 0.056/slice @ full 256 x 256
GRADIENT SUBSYSTEM
Strength, mt/m (GRADIENT SUBSYSTEM) 2020/35; opt 30/52
Rise time to 10 mt/m, msec (GRADIENT
SUBSYSTEM) 0.2; opt 0.13/0.08 1
Cpu (NETWORK/DATABASE) Dual Pentium IV
Memory size, mb (GRADIENT
SUBSYSTEM) 72 GB HD, 2 GB RAM
ARRAY PROCESSOR (EXTERNAL BEAM) Dual Pentium IV
Memory size, mb (GRADIENT
SUBSYSTEM) 5x18 GB HD, 1 GB RAM
Storage media/size (GRADIENT
SUBSYSTEM) CD-ROM
Image storage capacity (GRADIENT
SUBSYSTEM) Approx5,000
Respiratory gating (DISPLAY) Yes
Cooling method (X-RAY TUBE) Single cryogen, 2stage refrigeration
CRYOGEN USE, L/hr
Liquid helium (CRYOGEN USE, L/hr) 0.075
MAGNET WEIGHT, kg (CRYOGEN USE,
L/hr) 4,050; 5,500 in operation
DIMENSIONS (HXWXD), CM (CRYOGEN
USE, L/hr) 235 x 215 x 160
5-GAUSS FRINGE FIELD
Radial/axial, m (5-GAUSS FRINGE FIELD) 2.5/4
CONFIGURATION Compact, open sides
OTHER ATTRIBUTES (Interference
compensation) 3-D shim; IPP/ panoramic table; 3-D MIP/MPR/SSD; remote diagnostics; Syngo/MRease; dynamic analysis; integrated postprocessing.FDA CLEARANCE (Interference
compensation) Yes
CE MARK (MDD) (Interference
compensation) Yes
MARKETING REGION (Interference
compensation) Worldwide
Our specifications
Год производства: 2006
Serial number: 24017
Magnet: OR70
Gradients: Quantum
Coils: Spine Array, Extrimity, Neck Array, Shoulder Array (small & large), Flex (large & small), Head Array, Body Array Flex & Extender, Angio Array
Software options: Advanced 3D, Advanced Turbo, Advanced Angio, Care Bolus, Panoramic Table, RoW, Maestro Class, 1D/2D Pace, Inline Processing, Syngo General, EpiPerDiff, CAP 3D Voimode, CAP 3D Main Core Plus, CORE, PAT Basic, MPPS Support.
